Dew Point Sensors FA 300-2 Ex (ATEX A

Dew Point Sensors FA 300-2 Ex (ATEX A
Dew Point Sensors FA 300-2 Ex (ATEX A
Product Code : FA 300-2
Product Description

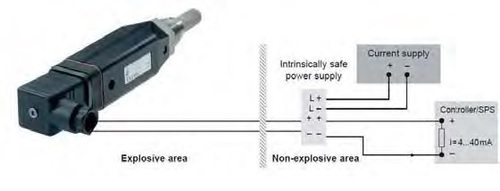

We are foremost manufacturer, supplier and exporter of a wide assortment range of Dew Point Sensors FA 300-2 Ex (ATEX Approved) in Vapi, Gujarat, India. FA 300-2 Ex measures the dew point resp. the pressure dew point in expl-osive areas of Zone 1. Protection class: FA 300-2 Ex: II 2 G Ex ia IIC T4. With the Atex approval for Zone 1 the established dew point measuring instruments FA 300-2 can now be used in expl-osive areas of the industry as well.  FA 300-2 Ex may only be used in connection with approved Ex-rated power supplies or safety barriers or galvanic separating elements with max.:

U0 = 30 V max.
I0 = 100 mA max.
P0 = 1 W max.

Special features:

* Robust design
* Pressure-tight up to 300 bar
* Long-term stable humidity sensor, approved for years
* 4...20 mA analogue output in 2-wire system
* Further parameters adjustable via software: % RH, g/m³, mg/m³, ppm V/V, g/kg
* CS Service Software for data storage and calibration (no approval for exp-losive areas)
